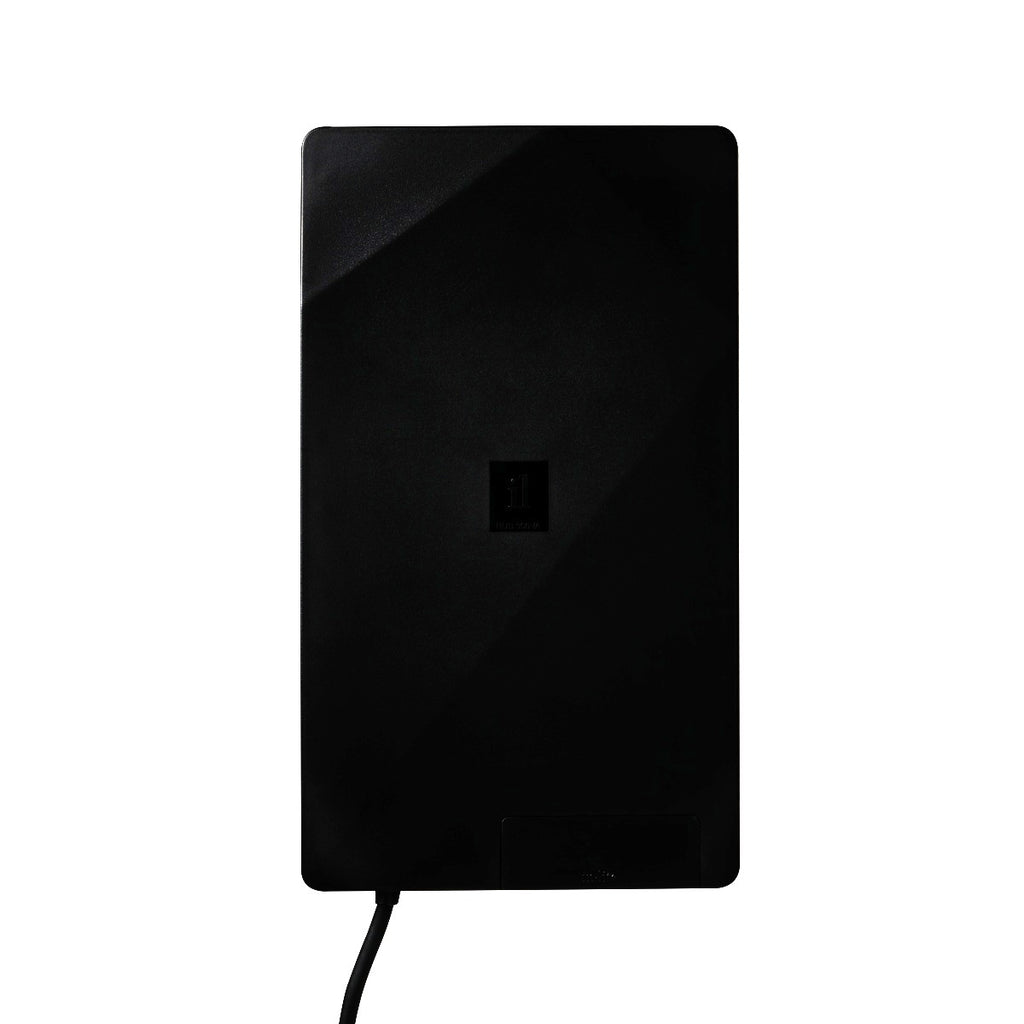

In-lite 21v TRANSFORMER SMART HUB 300 Low Voltage Outdoor Transformers
in-lite
10500620
£688.97
Executive Summary
The in-lite SMART HUB-300 is a high-capacity, 300VA smart transformer designed to power, automate, and manage expansive low-voltage (21V) outdoor LED lighting networks. Controlled wirelessly via Bluetooth using the in-lite app, it allows users to establish up to three completely independent lighting zones across a landscape.
Key Technical Specifications
- Power Capacity: 300 Volt-Amps (VA) maximum total output.
- Zone Limit: Maximum load of 130VA per individual cable line.
- Output Voltage: 21V AC (engineered to eliminate voltage drop over long distances).
- Maximum Cable Run: Supports up to 160 metres per line when paired with high-quality 10/2 low-voltage cable.
- Connectivity: Bluetooth Low Energy (supports mesh networking for extended range).
- Dimensions: 230mm x 150mm x 72mm (approximate profile).
Core Features & Benefits
- Multi-Zone Versatility: Features three dedicated cable entries to create and schedule three distinct lighting zones (e.g., Zone 1: Driveway, Zone 2: Patio, Zone 3: Garden beds).
- Advanced App Control: Manage scheduling, custom timers, motion-sensor triggers, dimming, and colour temperature adjustments (when using in-lite TONE fixtures) directly from an iOS or Android smartphone.
- Shallow Installation: Because it converts high-voltage mains power down to a safe 21V, cables do not require deep, dangerous trenching and can be laid safely under mulch or shallow soil.
- Expandable Range: Built-in Bluetooth mesh technology allows additional smart hubs or signal repeaters to link together, extending control across massive residential or commercial properties.
Crucial Safety & Installation Notes
- Luminair Compatibility: Because this transformer outputs an elevated 21V to prevent voltage drop, it is incompatible with certain standard low-voltage fixtures like the regular DB-LED, HYVE, FUSION, and LIV ranges. Ensure you use designated 21V-ready variants (such as DOT or DOT 22).
- Placement: Must be mounted vertically on a wall or post, roughly 300mm to 500mm above ground level to protect it from dirt and heavy water splashback.
- Weathering: While weather-resistant, it requires an official in-lite SMART HUB PROTECTOR housing if installed in an area fully exposed to heavy, driving rain.
If you are currently setting up a layout, we can assist you further if you let us know:
- The total wattage or VA of the fixtures you plan to connect?
- The rough distances between the transformer and your furthest light points?
- If you need a checklist of compatible cables, connectors, or fixtures?
Colour: Black
Dimension: 330 x 190 x 60 mm (LxWxH)
Installation: SMART HUB 300 - 21v Transformer is supplied pre-wired and fitted with EU to UK Plug Adapter.
